A Real-World Engineering Solution Built to Drawing
In bulk material handling, there is no “one-size-fits-all” solution.
This customized inclined screw conveyor system was manufactured for an Australian client based strictly on their layout drawing, material characteristics, and site conditions.
Unlike standard catalog models, this project required engineering-level customization, not simple dimension changes.
Why This Conveyor Was Custom-Built
The customer required a feeding system that could:
- Transfer material from ground level to an elevated process point
- Maintain stable output at an inclined angle
- Fit into an existing production layout without modification
- Operate reliably under continuous industrial use
Off-the-shelf screw conveyors could not meet these constraints simultaneously.
As a result, the system was designed from structure to drive unit, based on the actual working conditions.
Structural Design Based on On-Site Layout

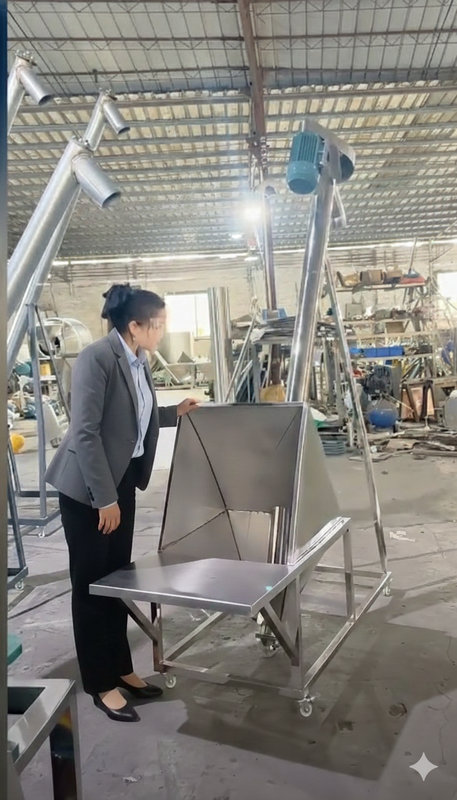

The inclined screw conveyor adopts a reinforced stainless steel frame with cross-bracing to ensure rigidity during operation.
Key design considerations included:
- Overall height and inclination angle matching the customer’s drawing
- Stable center of gravity to prevent vibration at elevated discharge
- Mobile base with lockable industrial castors for positioning and maintenance
The frame structure was engineered to support long-term operation without deformation.
Customized Feeding Hopper Design
The feeding hopper is not a standard box-type hopper.
It features:
- Multi-faceted tapered geometry to improve material flow
- Smooth internal stainless steel surfaces to reduce residue
- Reinforced panels to handle repeated loading
The hopper shape was optimized to ensure consistent screw loading, preventing bridging and uneven feeding—especially important for granular or powder materials.
Screw Conveyor Assembly & Performance
The enclosed screw conveyor tube is fully fabricated from stainless steel to ensure:
- Dust containment
- Clean operation
- Protection from external contamination
The screw flight is precision-formed and aligned to maintain concentric rotation.
Pitch and diameter were selected based on conveying height, incline angle, and required capacity.
This design ensures:
- Stable conveying at an incline
- Reduced backflow
- Consistent discharge rate
Top-Mounted Drive Unit for Reliability
The motor and gearbox are mounted at the top discharge end.
This configuration offers several advantages:
- Reduced load on the drive during startup
- Improved torque efficiency
- Lower risk of material entering the drive section
- Easier inspection and maintenance
The drive unit is enclosed and suitable for continuous industrial operation.
Built to Australian Application Requirements
Electrical configuration and mechanical design were prepared with Australian operating standards in mind, including:
- Compatible voltage and frequency options
- Safe motor positioning
- Integration readiness for upstream and downstream equipment
Each unit is assembled and inspected before shipment to ensure dimensional accuracy and operational reliability.
Not a Catalog Model — A Drawing-Based Solution
This inclined screw conveyor is a drawing-based, application-specific system, customized in:
- Inclination angle
- Hopper size and geometry
- Overall height and discharge position
- Frame footprint and mobility
- Drive configuration
Every structural and functional detail was defined by real production needs—not marketing templates.
Typical Applications
This type of customized inclined screw conveyor is suitable for:
- Food ingredient feeding systems
- Powder and granular material transfer
- Packaging line feeding
- OEM equipment integration
Final Thoughts
For international customers, especially in Australia, reliable material handling equipment depends on engineering accuracy, not generic specifications.
Custom-built screw conveyor systems like this one demonstrate how drawing-based manufacturing and practical design experience lead to stable, long-term operation in real production environments.
